PTR HARTMANN offers test connectors for all common USB, RJ, HDMI, Lightning as well as power and audio jacks. The test connectors have a robust design and optimised insertion chamfers. In this way, they ensure an outstandingly long mechanical service life and damage-free contacting of the connector. Thanks to their compact design, the test connectors can also be used in confined spaces and still reach deeper connectors. They are therefore ideal for testing and flashing electronic assemblies in telecommunications, infotainment or automotive applications.
More Information Download
The INS265 DIN rail housing with integrated connection terminals can be individually configured for small to medium-sized series of electronic devices for the DIN rail. From the housing widths between 6.2 mm to 15.0 mm to the diverse housing options, many aspects of the housing can be selected. The appropriate printed circuit board is individually designed by the customer, assembled and soldered in at the 6 contact points.
More Information Download

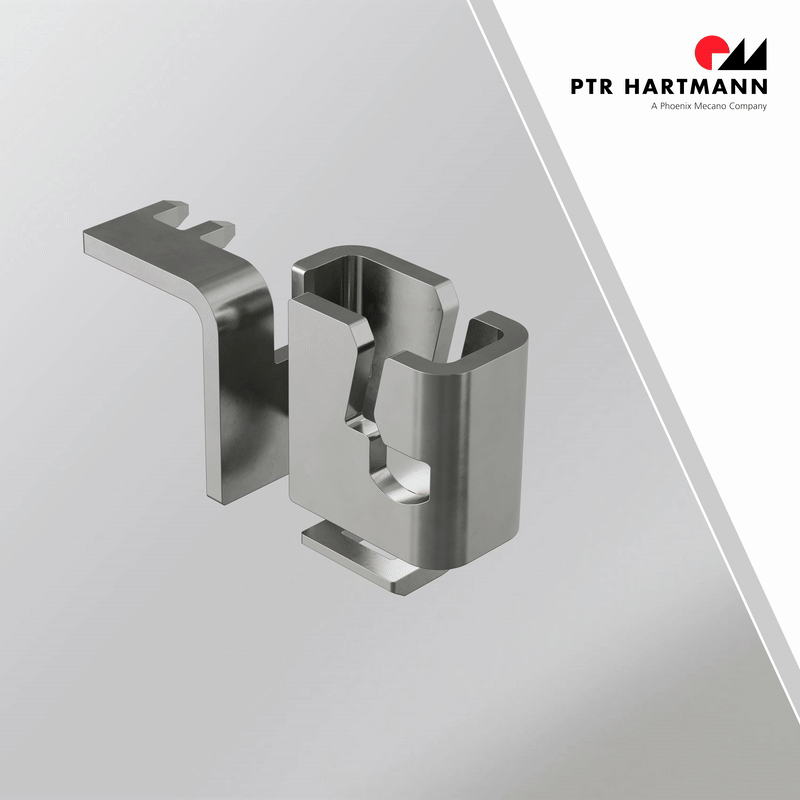

With integrated connection technology, PTR HARTMANN is presenting a new concept for electrical contacting. Thanks to this innovative and flexible solution, electrical contacts can be incorporated directly in insulating material housings, which makes them an integrative component part of the terminal.
More Information Download
PTR HARTMANN GmbH manufactures electrical components, test technology equipment and customer-specific inductors. Our in-house development and manufacturing competencies include Rotary Code Switches, Micro Switches, PCB Terminal Blocks, Test Probes and Inductors.
More Information Download
The new high-current test probe 1075/GV is ideally suited for the secure contacting of tab connectors through the unique tip style. The contact pin guarantees a scratch-free contact for high currents of up to 50.0 A.
More Information Download

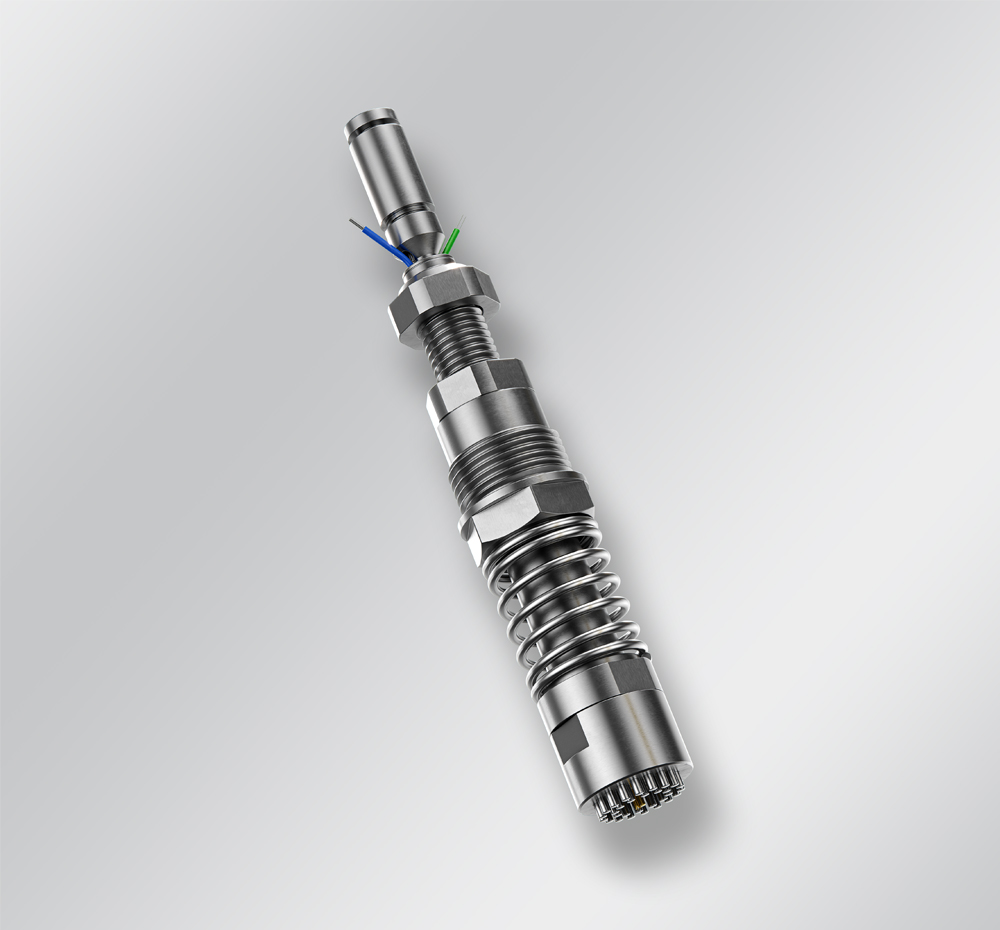

The HSK 5455 is designed for a rated current of up to 400 A and is optimally suited for use in function testing, signal transmission and energy supply.
More Information Download
A version of the P36THR with an ESD pin is now available. The electrostatic discharge voltage can be discharged specifically to the circuit board via this additional connection pin.
More Information Download
PTR HARTMANN GmbH will be supported by Phoenix Mecano Inc. in the area of connection technology as a sales partner.
More Information Download
PTR HARTMANN has new developed the PBH00S pushbutton switch. Thanks to its function as an opener and its long operating travel, it can be used as an anti-manipulation feature
More Information Download
With the AK136 series, PTR HARTMANN GmbH offers a PCB multi-connector with 5 mm spacing which can be inserted from above.
More Information Download
PTR HARTMANN offers you innovative solutions in the components and testing technology sector. We constantly expand and renew our product range to ensure that we continue to play an important role in current trends and developments.
You can learn more about the technology, materials, approvals etc. of our products.
learn more
